Super 16 Acrylic Case – Fluo Green

$20.00

In stock

SKU: BA1U023 Categories: , ,

Description

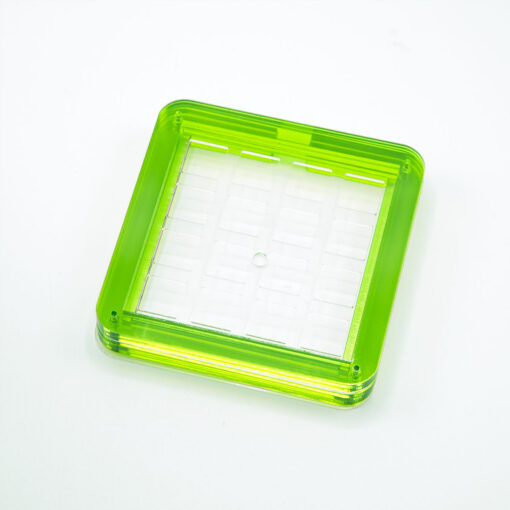

This is a Fluorescent Green acrylic case for the Super 16 V2 Macropad by 1upkeyboards. The case comes with 7 layers: five 3mm layers and two 1.5mm layers. The two 1.5mm layers are fitted to the bottom and middle of the stack to allow for maximum lighting effects from the Super 16 V2 PCB. This also allows for a low side profile that is 3mm shorter than the previous Super 16 cases. Included in the kit are two acrylic support pieces to allow the use of rotary encoders without fear of pushing the hot-swap PCB off of the switches.

Note: Acrylic supports for encoders may require filing or sanding to properly fit in some cases due to acrylic thickness tolerances.

Included in the box are:

  • Five 3mm Fluorescent Green layers.
  • Two 1.5mm Clear layers.
  • Two 3mm PCB supports for use in combination with rotary encoders.
  • Four 8mm brass standoffs.
  • Four M2x5mm hex screws.
  • Four M2x12mm hex screws.
  • Four Rubber Bumpons.

Super 16 V2 PCB sold separately. Available HERE.



Additional information

Weight 0.45 lbs
Dimensions 4 × 4 × 1 in
