1UP RGB 60% PCB HTE™ (Hotswap Tsangan Edition) TSANGAN/HHKB

$30.00

This is a discontinued PCB, for the latest version check out the pi60 HSE™ 60% PCB.

1UP RGB Underglow 60% fully programmable PCB that’s Hot Swappable – so no soldering required.

Now everyone can create a custom, fully programmable keyboard without any tools or experience!

  • Hot swappable for MX switches.

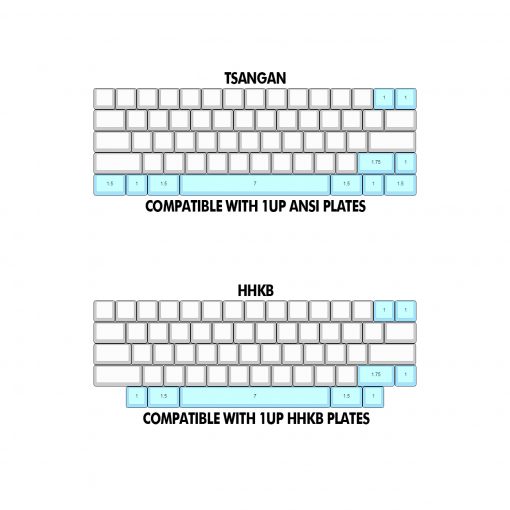

  • Tsangan or HHKB layout only. Compatible with LJD61UP V2 Universal Kits, HHKB plates or ANSI plates.
  • Fully programmable 60% PCB.
  • RGB underglow.
  • Key remapping with QMK [click here] and kbfirmware.com [through the JSON]
  • Supports in-switch North-facing LEDs.
  • 7u spacebar only.
  • Diodes, resistors and hotswap sockets presoldered.
  • Multimedia keys supported.
  • Black PCB with rear facing 1UP logo.
  • Works with USB C to USB C cables as well as USB C to USB A cables (not included).

Combine this with a clear, semi transparent base or open-sided case, like a Z-Caseplastic base, aluminum base or a sandwich kit, like the LJD61UP, to create your endgame RGB board without soldering.

***FREE shipping within the CONUS***

International shipping is calculated in the cart prior to purchase.

In stock

SKU: PC1U000003 Categories: , , Tags: , ,

Description

This is a discontinued PCB, for the latest version check out the pi60 HSE™ 60% PCB.

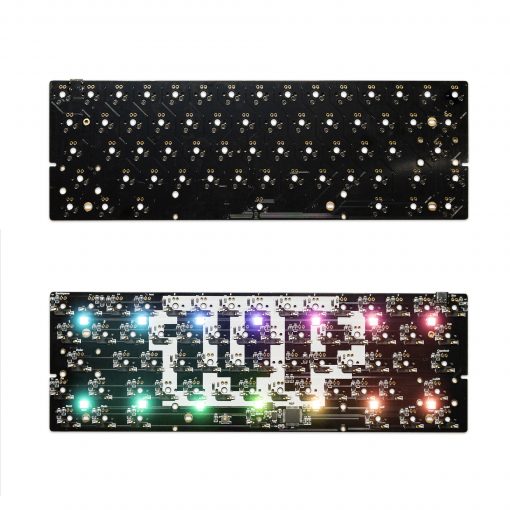

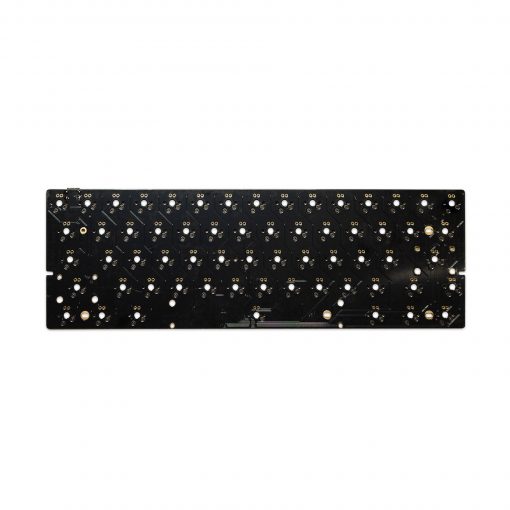

The 1up HTE PCB is a hot swappable 60% mechanical keyboard with RGB Underglow and USB type C connector. This means there is no soldering required!. The HTE PCB features a Tsangan layout with a Winkeyless style bottom row, split backspace, and split right shift.

Now everyone can create a custom, fully programmable keyboard without any tools or experience!

  • Hot swappable for MX switches.
  • Fully programmable with QMK and VIA.
  • Tsangan or HHKB layout only. Compatible with LJD61UP V2 Universal Kits, HHKB plates or ANSI plates.
  • 7u spacebar only.
  • RGB underglow.
  • Supports in-switch North-facing LEDs.
  • Diodes, resistors and hotswap sockets presoldered.
  • Multimedia keys supported.
  • Black PCB with rear facing 1UP logo.
  • Works with USB C to USB C cables as well as USB C to USB A cables (not included).

Combine this with a clear, semi transparent base or open-sided case, like a Z-Caseplastic base, aluminum base or a sandwich kit, like the LJD61UP, to create your endgame RGB board without soldering.

*** IMPORTANT INFORMATION ***

  • Switches must be installed with the PCB on a flat surface, so as to not damage the hot swap sockets. Pushing the switches in while holding the PCB in midair may cause the hot swap sockets to come off.
  • Due to the hot swap sockets and the USB C connector some cases may not be compatible without modification.
  • There is no middle hole screw placement between letters G and H for universal bases as it interferes with the hot swap socket.

QMK Firmware Badge

***FREE shipping within the CONUS***

International shipping is calculated in the cart prior to purchase.

Additional information

Weight 0.5 lbs
Dimensions 13 × 5 × 1 in
